SPQ Series EPS Cutting Line
Get a Quick QuoteThe SPQ Series EPS Cutting Line is a eps cutting machines manufactured by ChinaEps, featuring model of SPQ(2000/3000/4000/5000/6000)B and block length of 2000-6000 mm. CE certified. Designed for automated eps block cutting production, high-volume insulation sheet manufacturing, integrated cutting and packing lines.

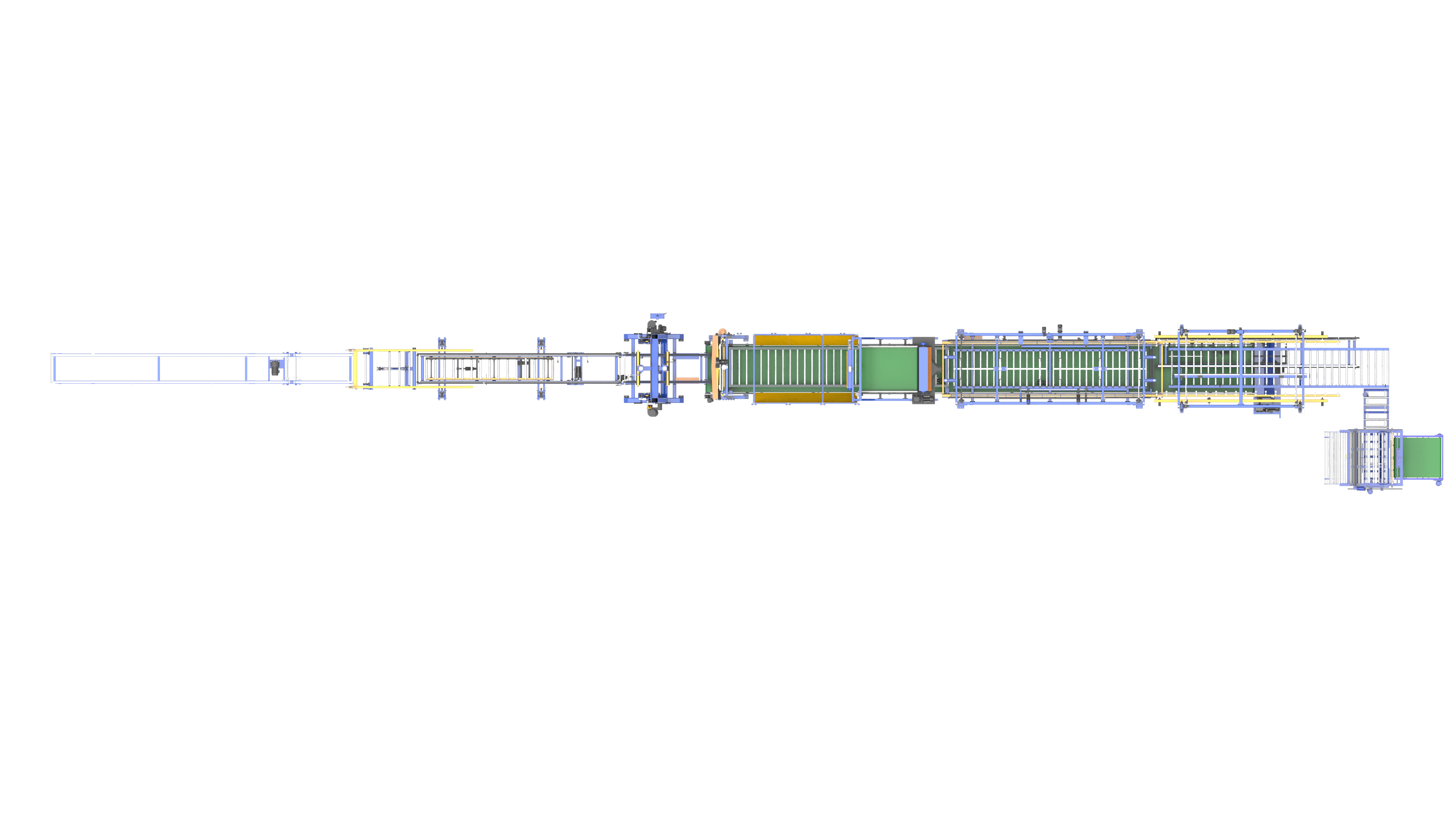

The SPQ Series is a fully automated EPS cutting line featuring patented automatic wire setting, oscillation cutting, and integrated scrap recovery. Handles blocks from 2000-6000mm with ±0.5mm tolerance and sets 60 wires in just 3 minutes. Includes block storage, tilting, alignment, horizontal/vertical/cross cutting, de-stacking, and optional packing machine.
Key Specifications
Why Choose This Machine
CE certified with multiple safety features
Automatic wire setting system (patented design)
Oscillation cut with cooling fans
Hot wire end cooling systems
Top, side, and bottom scrap recovery
Optional wire break warning system
High output with high automation
Customizable design available
Applications
This machine is widely used across multiple industries and production scenarios.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SPQ(2000/3000/4000/5000/6000)B |
| Block Length | 2000-6000 mm |
| Block Width | 1200 mm |
| Block Thickness | 1200 mm |
| Cutting Speed | 1.8-2 m/min @ 15kg/m³ |
| Wire Setup Time | 60 wires in 3 minutes |
| Thickness Tolerance | ±0.5 mm |
* Specifications are subject to change without notice. Contact us for the latest technical data.
