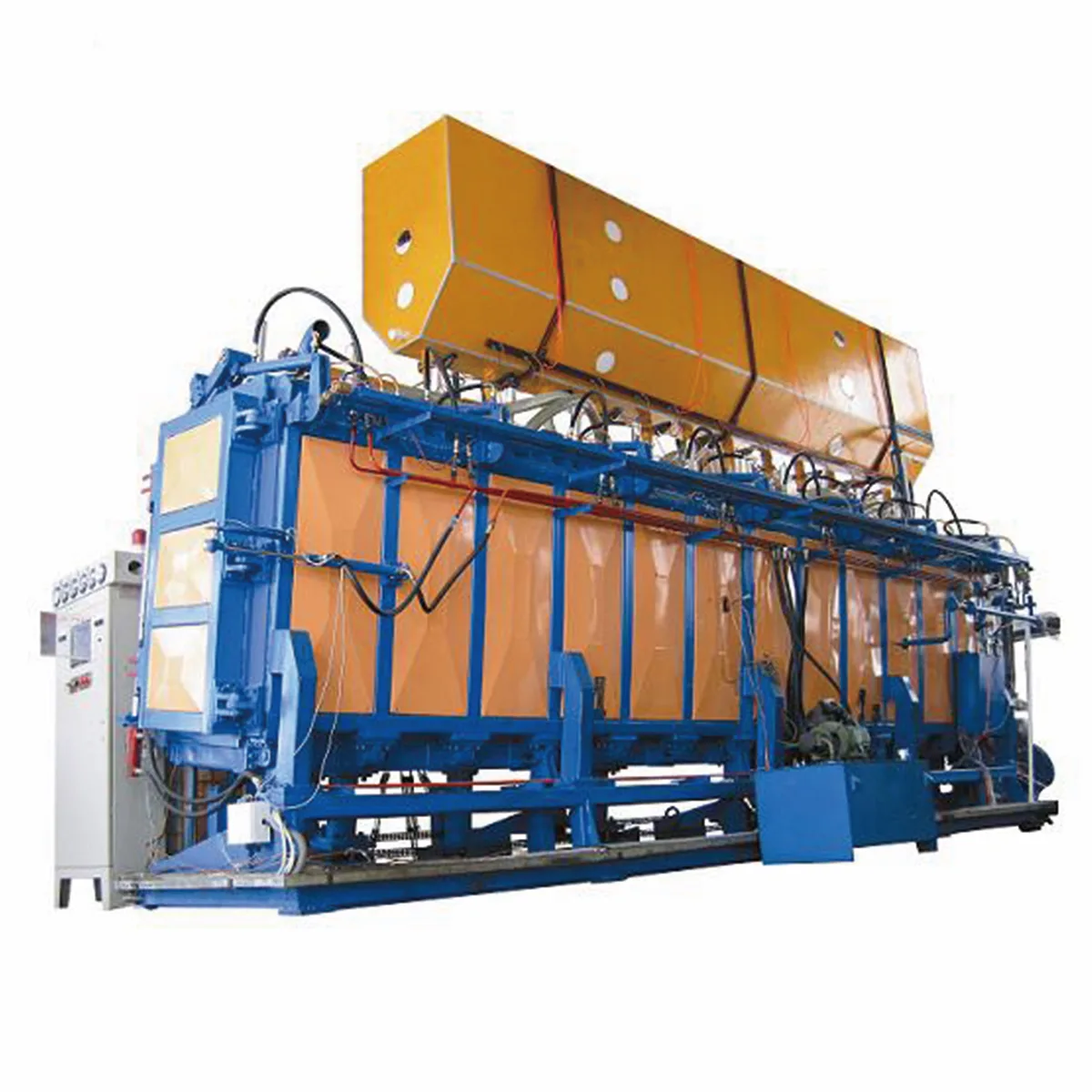

BM-1200 Automatic Block Molding Machine
Get a Quick QuoteThe BM-1200 Automatic Block Molding Machine is a eps block molding machines manufactured by ChinaEps, featuring block size (l×w×h) of 1,200 × 600 × 300 mm and cycle time of 6-8 min. CE & ISO 9001 certified. Designed for eps insulation boards for construction, packaging blocks for cutting, small to medium production facilities.
An EPS block molding machine is industrial equipment that fuses pre-expanded polystyrene beads into large solid blocks using steam and pressure. The BM-1200 produces blocks up to 1,200 x 600 x 300 mm with hydraulic clamping, vacuum cooling, and 6-8 minute cycle times at densities of 8-30 kg/m3. It is designed for small to medium EPS factories producing insulation boards, packaging blocks, and construction panels.
Key Specifications
Why Choose This Machine
Fully automatic PLC-controlled molding cycle
Hydraulic mold clamping system
Vacuum cooling for reduced cycle times
Automatic material filling with air-assist
Adjustable block density from 8-30 kg/m³
Auto-ejection and block pusher system
Applications
This machine is widely used across multiple industries and production scenarios.
Technical Specifications
| Parameter | Value |
|---|---|
| Block Size (L×W×H) | 1,200 × 600 × 300 mm |
| Cycle Time | 6-8 min |
| Steam Pressure | 0.08-0.12 MPa |
| Steam Consumption | 30-40 kg/cycle |
| Installed Power | 20 kW |
| Density Range | 8-30 kg/m³ |
| Vacuum System | Built-in water ring pump |
| Machine Weight | 8,000 kg |
* Specifications are subject to change without notice. Contact us for the latest technical data.
