EPS Block Molding Machine

Name: EPS Block Molding Machine
Brand: ChinaEps
Availability: PreOrder

Complete-line EPS specialist — 500+ factories running on our equipment

Get EPS Machine Pricing — Reply in 4 Hours Chat on WhatsApp

EPS Block Molding Machine — eps block molding machines by ChinaEps, CE & ISO 9001 certified.

We manufacture EPS block molding machine BM-1200 — up to 6,000mm blocks, vacuum cooling, automatic hydraulic clamp. CE certified, 60+ countries.

Key Specifications

Block Size (L×W×H)

1,200 × 600 × 300 mm

Cycle Time

6-8 min

Steam Pressure (Mold Chamber)

0.08-0.12 MPa

Steam Consumption (per Cycle)

30-40 kg/cycle

CE and ISO 9001 Certified 5-Yr Structural Warranty 24h Technical Response

Send Inquiry Download Specifications

Inside the Machine — Core Components

Eight engineered subsystems that make this machine production-grade. Each component is sourced, built, and tested for industrial duty cycles.

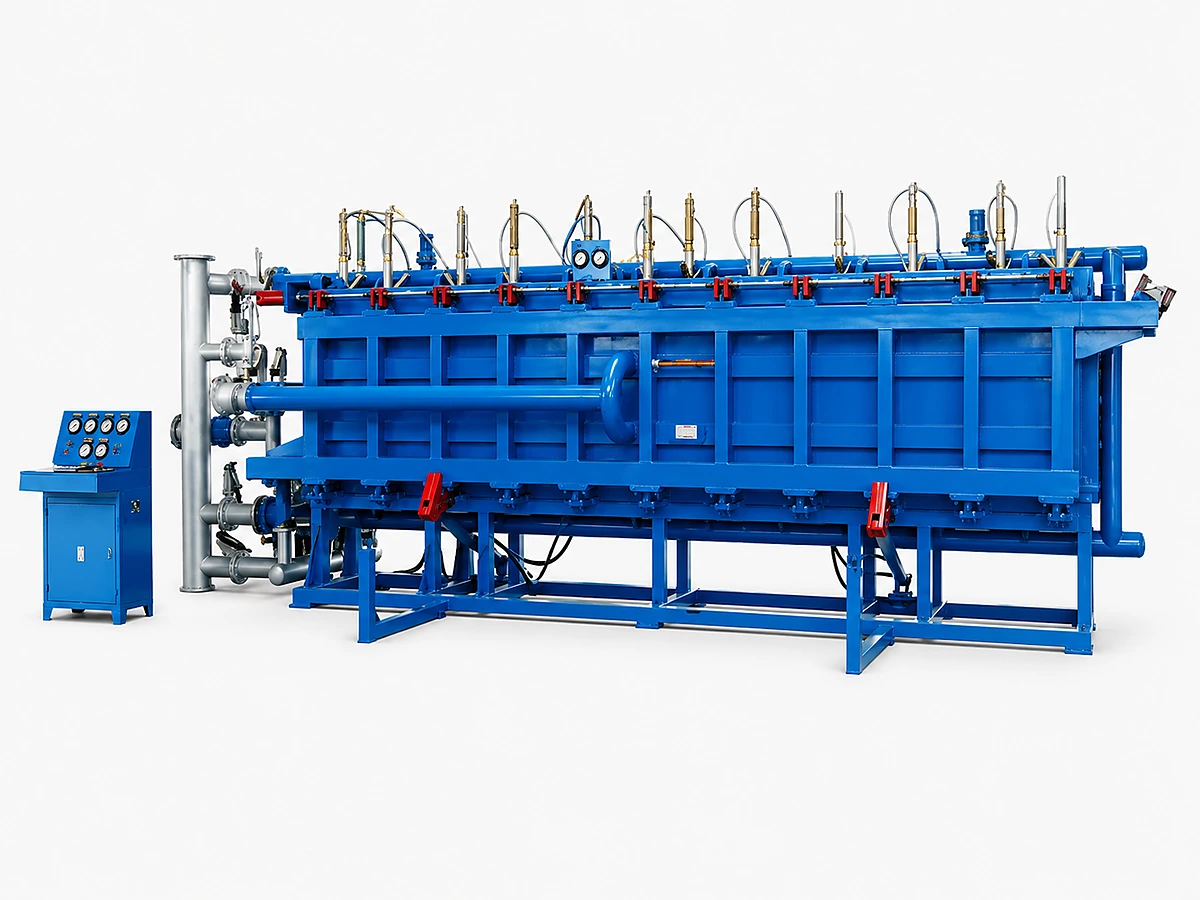

1. Horizontal Block Mold (Multi-Bay Layout)

Function

High-strength horizontal mold chamber with multi-bay layout — produces blocks 1,200-1,800 mm long × 600-1,200 mm wide × 300-600 mm high depending on machine model (BM-1200 to BM-1800).

Engineering Details

Boiler-grade industrial steel main body (welded, pressure-vessel grade). Inner walls: 0.3mm 304 stainless steel wedge plates with engineered hole pattern (12% open-area ratio). External body: mineral-wool insulation + galvanized exterior plates. Single front-door opening minimizes steam + vacuum leakage. TUV / Bureau Veritas pressure-vessel certified.

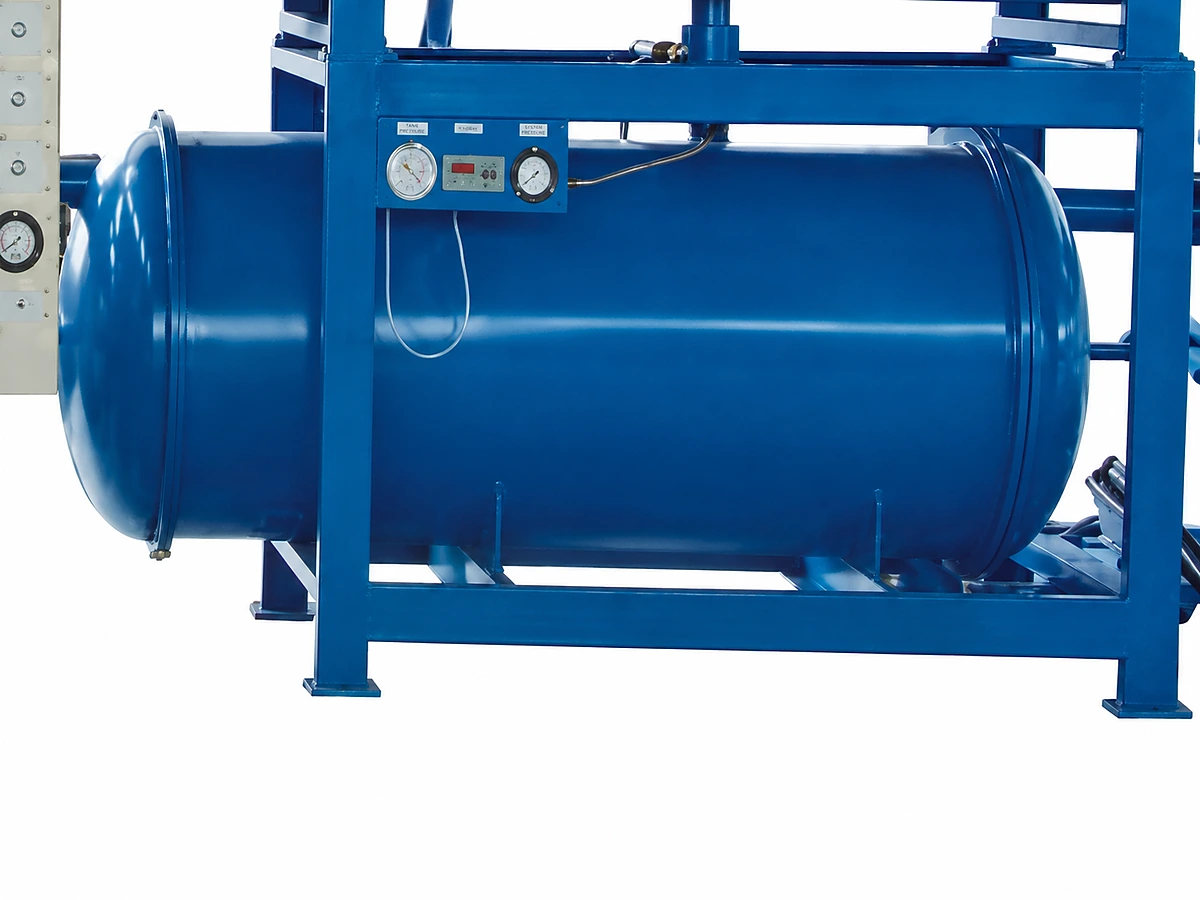

2. Steam Tank (0.4-0.8 MPa Working, Pressure-Vessel Certified)

Function

Stores and supplies steam to mold chamber — buffer between boiler and machine for stable steaming cycles. Sized 0.5-1.0 m³ depending on machine model.

Engineering Details

AISI 304 stainless steel pressure vessel + Type 20G boiler-grade frame. Working steam pressure 0.4-0.8 MPa with safety relief valve at 2 bar max. Gemu-Germany or Burkert-Germany pressure-reducing valve + steam regulating valve. Insulated to minimize heat loss. TUV / Bureau Veritas certified.

3. Air Receiver Tank (Pneumatic Power for Fill + Eject)

Function

Compressed-air storage powering pneumatic actuators, fill injectors, and ejection cylinders throughout each molding cycle.

Engineering Details

Vertical pressure vessel with safety relief valve + drain + pressure gauge. Working air pressure 0.5-0.7 MPa / consumption 1.0-1.2 m³ per cycle. Capacity 0.3-1.0 m³ depending on machine size. Festo-Germany pneumatic control unit + multi-injector hydraulic fill array. Water consumption 0.4-0.5 m³/day.

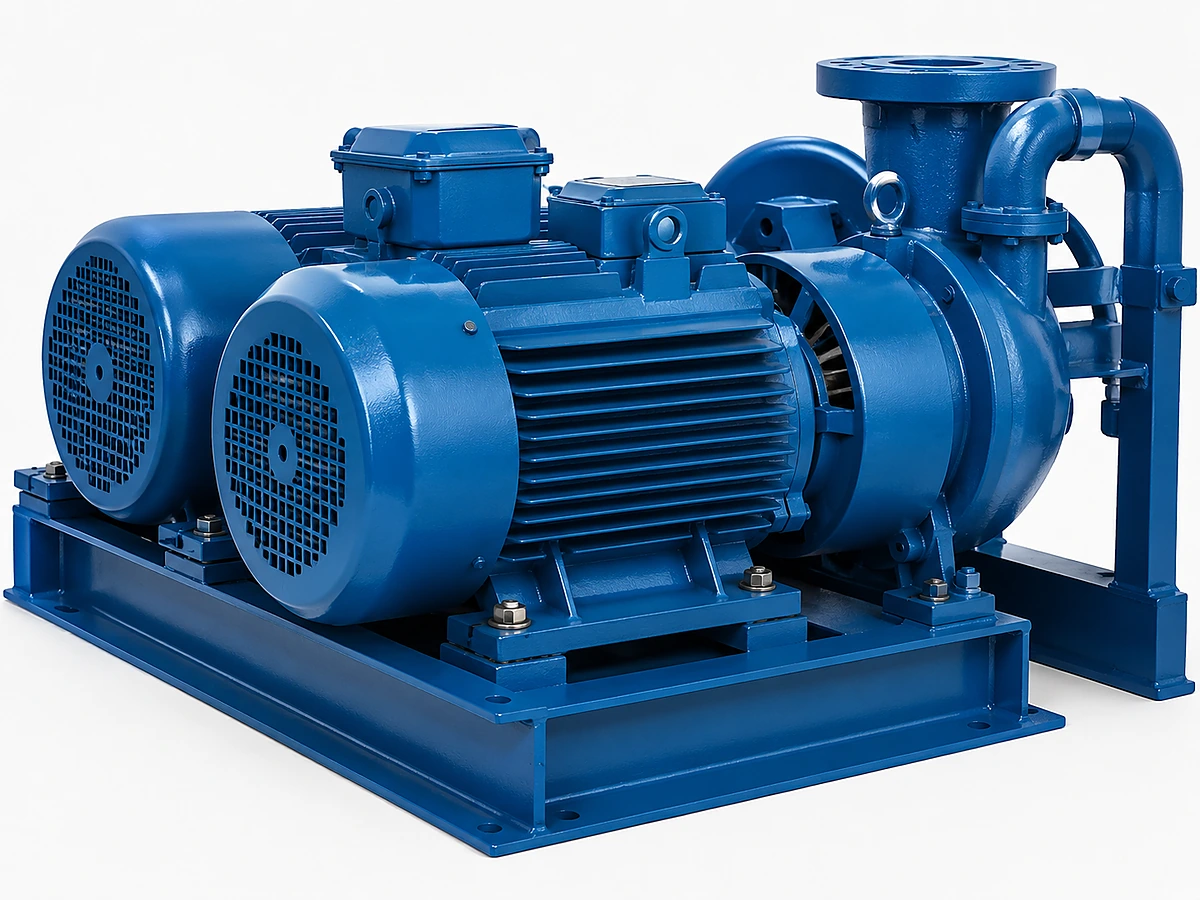

4. Twin-Motor Vacuum Pump (Water-Ring, Parallel Configuration)

Function

Twin-motor parallel vacuum pump for fast cooling and ensuring block compacting — twin redundancy enables continuous operation even if one motor needs maintenance.

Engineering Details

2 × water-ring vacuum pumps in parallel (7.5-15 kW each depending on machine size, Becker / Edwards-class performance). Cylindrical vacuum buffer tank 5-7 m³ with water spraying + sieving units. Reaches 0.06 MPa absolute in 30-60 seconds. Water-spray cooling reduces residual moisture <0.5%.

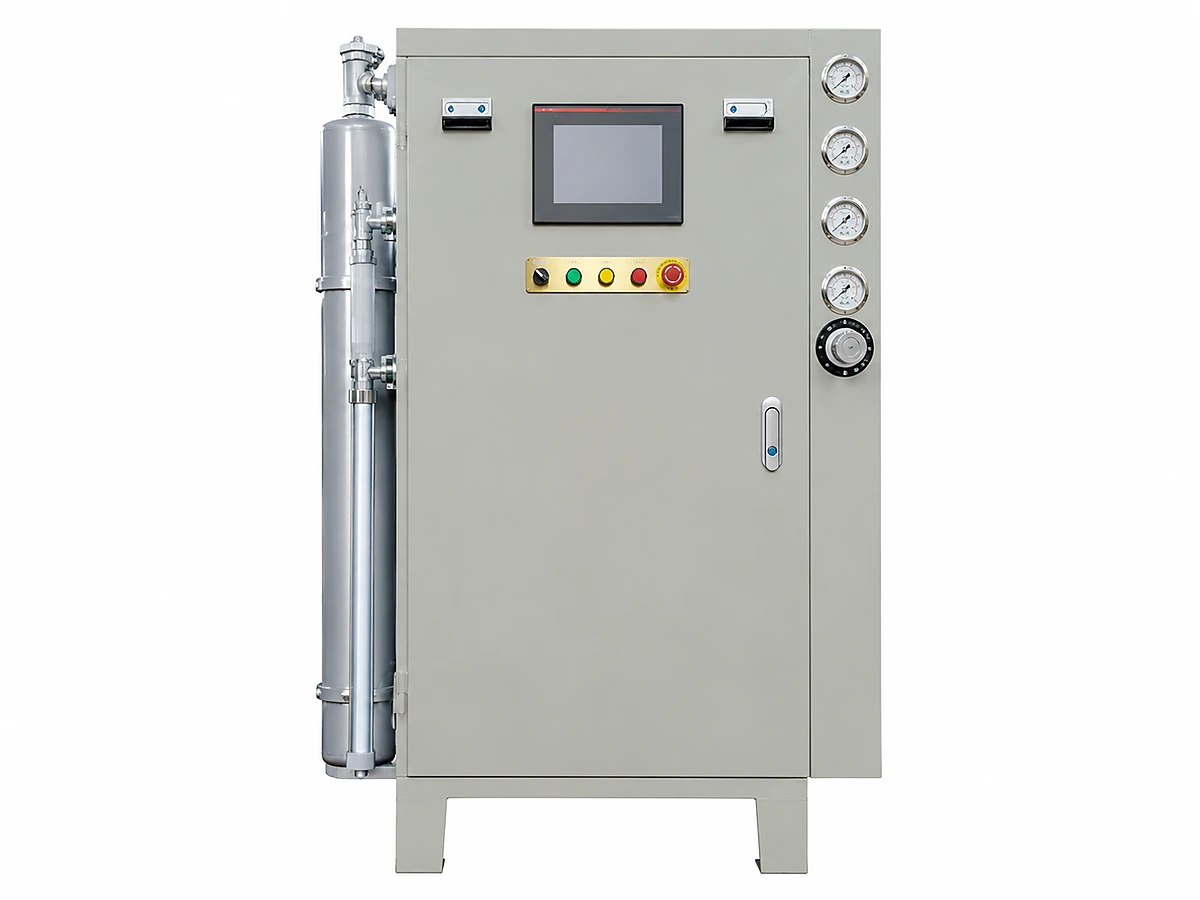

5. Control Cabinet (Siemens S7-1200 PLC + 99-Recipe HMI)

Function

PLC control system supervising the full cycle (fill → steam → vacuum cool → eject) with recipe-based control for quick changeover between block sizes and densities.

Engineering Details

Siemens S7-1200 PLC + 10-12" Weintek HMI touch screen . 99-recipe storage library for SKU changeover. USB recipe export + optional Ethernet/IP for MES integration. Triple safety: computer supervision + real-time pressure feedback + hardware safety relief valve. Multi-user audit trail. Power: 380V / 50Hz / 3-phase.

Technical Specifications

4 models

Parameter	BM-1200 (Entry / Small Block)	BM-1400 (Standard Vacuum)	BM-1600 (Mid-Range / Adjustable)	BM-1800 (Premium / Jumbo Vacuum)
Block Size (L×W×H)	1,200 × 600 × 300 mm	1,400 × 800 × 400 mm	1,600 × 1,000 × 500 mm	1,800 × 1,200 × 600 mm
Block Density Range	8-30 kg/m³ (±3% tolerance)	8-30 kg/m³ (±3% tolerance)	8-30 kg/m³ (±3% tolerance)	8-30 kg/m³ (±3% tolerance)
Capacity @ 12 kg/m³	6-10 pcs/hour	8-12 pcs/hour	10-14 pcs/hour	12-16 pcs/hour
Capacity @ 20 kg/m³	3-4 pcs/hour	4-6 pcs/hour	5-7 pcs/hour	6-8 pcs/hour
Cycle Time	6-8 min	5-7 min	4-6 min	3-5 min
Steam Supply Pressure (Tank/Line)	0.4-0.8 MPa working / safety-relieved	0.4-0.8 MPa working / safety-relieved	0.4-0.8 MPa working / safety-relieved	0.4-0.8 MPa working / safety-relieved
Steam Consumption (per m³ Block)	12-15 kg/m³ finished block	12-15 kg/m³ finished block	12-15 kg/m³ finished block	12-15 kg/m³ finished block
Vacuum Tank	5 m³ buffer	6 m³ (5 m³ condenser + 1 m³ surge)	6.3 m³ (5 m³ condenser + 1.3 m³ surge)	~7 m³ buffer (horizontal large vacuum)
Air Pressure	0.3-0.6 MPa	0.6 MPa	0.6 MPa	0.3-0.6 MPa
Air Consumption	1.0 m³/cycle	1.1 m³/cycle	1.2 m³/cycle	1 m³/cycle
Water Consumption	0.3 m³/day	0.4 m³/day	0.5 m³/day	0.4 m³/day
Installed Power	20 kW	24.5 kW	35 kW	22 kW
Machine Weight	8,000 kg	10,000 kg	14,000 kg	18,000 kg
Voltage	380V / 50Hz / 3-phase	380V / 50Hz / 3-phase	380V / 50Hz / 3-phase	380V / 50Hz / 3-phase

* Specifications are subject to change without notice. Contact us for the latest technical data.

What This Machine Solves

Three production problems eliminated by this machine — with engineered, measurable solutions.

The Problem 1

Small fish-box and decorative-trim producers need block molding but cannot justify BM-1400 CAPEX at <1,000 blocks/month

How This Machine Solves It

BM-1200 (block size 1,200 × 600 × 300 mm, 6-8 min cycle, 20 kW) is sized for 300-800 blocks/month — entry-level CAPEX, fast payback.

The Problem 2

Entry-level block machines often skip steam-control PLC, leading to inconsistent block density and downstream cutting rejects

How This Machine Solves It

BM-1200 includes Siemens S7-1200 PLC standard — same as BM-1400 — keeps density variance under ±0.8 kg/m³ across blocks.

Working Principle

BM-1200 fuses pre-expanded EPS beads into 1,200×600×300 mm blocks via steam injection from top + bottom mold halves. PLC controls steam pressure, heating time, vacuum cooling, and ejection.

Step 1

1. Bead Loading

Aged EPS beads pneumatically conveyed from aging silo to mold via injector — fill time 25-40 s.

Step 2

2. Steam Injection

0.08-0.12 MPa steam injected into mold chamber for 60-90 s from top + bottom halves (supplied from a 0.4-0.8 MPa steam tank via pressure-reducing valve) — beads soften and fuse together.

Step 3

3. Vacuum Cooling

Vacuum pump pulls down 80-90 kPa for 90-150 s — accelerates internal cooling, prevents block deformation on ejection.

Step 4

4. Block Ejection

Mold opens; pneumatic ejector pushes the finished block onto roller conveyor for aging or direct cutting.

Engineered Performance Advantages

Every advantage backed by measurable specs — no marketing claims without data.

Twin-Motor Vacuum (Parallel Redundancy)

2 × 7.5-15 kW pumps

vs Single-pump competitors: full stop if pump fails

Two water-ring vacuum pumps in parallel configuration. If one motor needs maintenance, the other continues — no production stop. Critical for 24/7 fish-box / cooler production lines where unplanned downtime = lost orders.

Horizontal Layout (Floor Flexibility)

Single-level access

vs Vertical molders: 5-7m tall, gantry required

Horizontal layout means single-level operator access — no mezzanine, no gantry crane, no overhead clearance needed. Easier maintenance, lower install cost, fits any standard industrial ceiling (4m).

Block Size Flexibility

1.2-1.8 m × 0.6-1.2 m × 0.3-0.6 m

vs Vertical: fixed tall blocks (6m only)

4 block sizes (BM-1200/1400/1600/1800) cover small fish-box molds to large insulation blocks. Pick mold size per downstream cutting line — single machine adapts to multiple SKUs without modification.

Single-Door Opening

< 5% steam/vacuum leakage

vs Multi-door competitors: 15-20% leakage

Single front-door design minimizes steam + vacuum leakage. Better pressure containment = more consistent block density ±3% across full 8-30 kg/m³ range.

Triple Safety System

TUV / Bureau Veritas certified

vs Industry typical: 1-2 safety layers

Computer supervision + real-time pressure feedback + hardware safety relief valve. Pressure-vessel certified for EU / North America / Latin America / Southeast Asia export.

Cycle Time

6-8 min

vs BM-1400 typical 5-7 min

Slightly longer cycle due to smaller heat-transfer area — acceptable trade-off for small-block applications.

Steam Consumption

30-40 kg/cycle

vs BM-1400 typical 40-55 kg/cycle

Smaller block = less steam — lower steam-generator and water consumption costs.

Block Size

1,200 × 600 × 300 mm

vs optimised for fish-box / cooler-box / decorative-trim cutting

Sweet spot for downstream CM-2000 cutting machine — minimal off-cuts.

Real Production Applications

See where this machine fits in real factories.

Fish boxes and cold-chain packaging from EPS block sheets

Fruit and produce protection packaging crates

Industrial cushioning for high-value goods packaging

Cut EPS insulation panels stacked for export shipping

EPS decorative trim and architectural profile production

PE-film wrapped EPS block sheets ready for warehouse storage

Machine Configuration

Industrial-grade components from established global brands — every part traceable.

Component	Brand / Spec	Detail
PLC Controller	Siemens S7-1200	S7-1200 / FX5U class, 7-inch HMI touchscreen, Ethernet remote-monitoring port
Steam Valves	Schmalz / SMC	DN50 pneumatic actuators, 304 SS bodies, 1M cycle life
Vacuum Pump	Becker / Busch	Rotary vane, 100 m³/h displacement, 0.5 mbar ultimate vacuum
Mold (Aluminum)	In-house cast	Cast aluminum A356-T6, perforated steam plates, ±0.5 mm dimensional accuracy

Customer Case Studies

Customer details available on request.

Vietnam Year: 2024

Configuration

480 blocks/month, single-shift, 1,200 × 600 × 300 mm

Outcome

Hanoi fish-box converter started with BM-1200; payback in 16 months. Upgraded to BM-1600 second line Q2 2026 after orders grew 3×.

Maintenance & Safety

A clear schedule keeps the line running. Built-in safety systems protect operators and product alike.

Maintenance Schedule

Daily

Inspect mold cavity. Check steam pressure (0.08-0.12 MPa). Clean steam-screen perforated plates. Verify hydraulic pressure (120-ton spec). Test e-stop function.

Weekly

Lubricate hydraulic cylinder seals. Inspect water-ring vacuum pump. Check pneumatic fill nozzles. Drain steam condensate.

Monthly

Open mold; clean cavity. Inspect steam injection holes. Service vacuum pump water seal. Recalibrate steam pressure transducers.

Semi-Annual

Inspect hydraulic clamping cylinders for seal wear. Replace water-ring vacuum pump seal. Verify cooling water filtration system.

Annual

Major overhaul: replace hydraulic cylinder seals, service Siemens PLC battery, recertify pressure-relief safety system, update PLC firmware.

Safety Features

CE certification per EN 60204-1 + EN ISO 13849-1 PLd
Pressure-relief valve on steam chest at 0.18 MPa setpoint
Hydraulic safety interlock prevents steam injection until 120-ton clamping force achieved
Two emergency-stop mushrooms — Category 0 stop within 100ms
Mold-open safety guard prevents operator hand-trap during clamping cycle
Thermal cutoff in electrical cabinet at >60°C

Live Footage

See This Machine Running

Real ChinaEps production line footage from customer factories — not stock video.

EPS Block Molding Machine — With Vacuum System (Customer Line)

EPS Foam Block Moulding Machine — Real Production Footage

Browse all 20+ videos on YouTube

Build a Complete EPS / EPP Line

This machine integrates into the full ChinaEps production flow — upstream, downstream, and auxiliary equipment from one supplier.

Upstream — Bead Preparation

PE-900 or PE-1200 Pre-Expander

Small/mid pre-expanders matched to BM-1200 throughput. PE-1200 is the typical pairing for 500-1,500 t/year factories.

EPS Aging Silos (Compact)

Smaller fluidized aging silos sized for BM-1200 throughput.

Downstream — Finishing & Packing

SPQ-B Cutting Line

Cuts BM-1200 blocks into insulation sheets at ±0.5mm tolerance.

Auxiliary Systems

Upgrade Path to BM-1400

When your factory grows past 500 blocks/month, BM-1200 stays as backup while you add BM-1400 as primary.

ROI Snapshot

Quick reference numbers — for a precise quote with your factory data, use the ROI Calculator.

Equipment Investment

~$1,400-1,600/ton FOB illustrative (quote-specific)

Payback Period

14-18 months at 500 blocks/month (small-factory single-shift)

Throughput

80-110 blocks per 8-hour shift (1,200 × 600 × 300 mm blocks)

Run Detailed ROI Calculator →

Product FAQ

The questions buyers ask most often before placing an order.

When should I choose BM-1200 over BM-1400?

BM-1200 is the right choice if you produce thinner blocks (300mm height) or smaller block sizes for specialty packaging. Below 500 blocks/month, BM-1200's lower CAPEX (Contact us for pricing vs BM-1400's 80-110k) pays back faster. Above 500 blocks/month, BM-1400 wins on throughput per machine.

What block sizes can BM-1200 produce?

Standard 1,200 × 600 × 300 mm. The quick-change cavity insert allows variations: 1,200 × 600 × 200mm thin blocks for ceiling panels, 1,200 × 600 × 400mm thicker blocks. Mold-change 4-6 hours.

What density range and bead grades does BM-1200 handle?

8-30 kg/m³ (±3% tolerance). Compatible with standard EPS and fast-cycling beads. For FR/graphite EPS at the upper end of that range, consider BM-1400 or BM-1800 for higher throughput.

Steam boiler requirement?

Minimum 0.5 ton/h at 0.2 MPa. Most small factories use 0.8 ton/h boiler.

Ships to 220V/60Hz?

Yes — factory build option. No price difference; 2-week lead time adjustment.

Cycle time and daily throughput?

Cycle 4-6 min depending on density. 8-10 blocks/hour single-shift = 60-80 blocks/day. Two-shift operation reaches 120 blocks/day.

Are you a manufacturer or a trading company?

We manufacture. Block molding machines are built in our own plant, and the BM-1200 / BM-1400 / BM-1600 / BM-1800 variants on this page are our own model series, not resold equipment. You are welcome to visit before ordering, and to ask for the machine to be run in front of you at the factory. The two videos further up this page are footage from customer lines, not renders.

Which block molding machine model should I ask you to quote?

Give us three numbers and we will quote against them rather than send a catalogue: the largest block dimension you need, your target density in kg/m³, and blocks per day. Those three eliminate most of the four variants immediately. If you do not have them yet, the specification table above is ordered smallest to largest.
