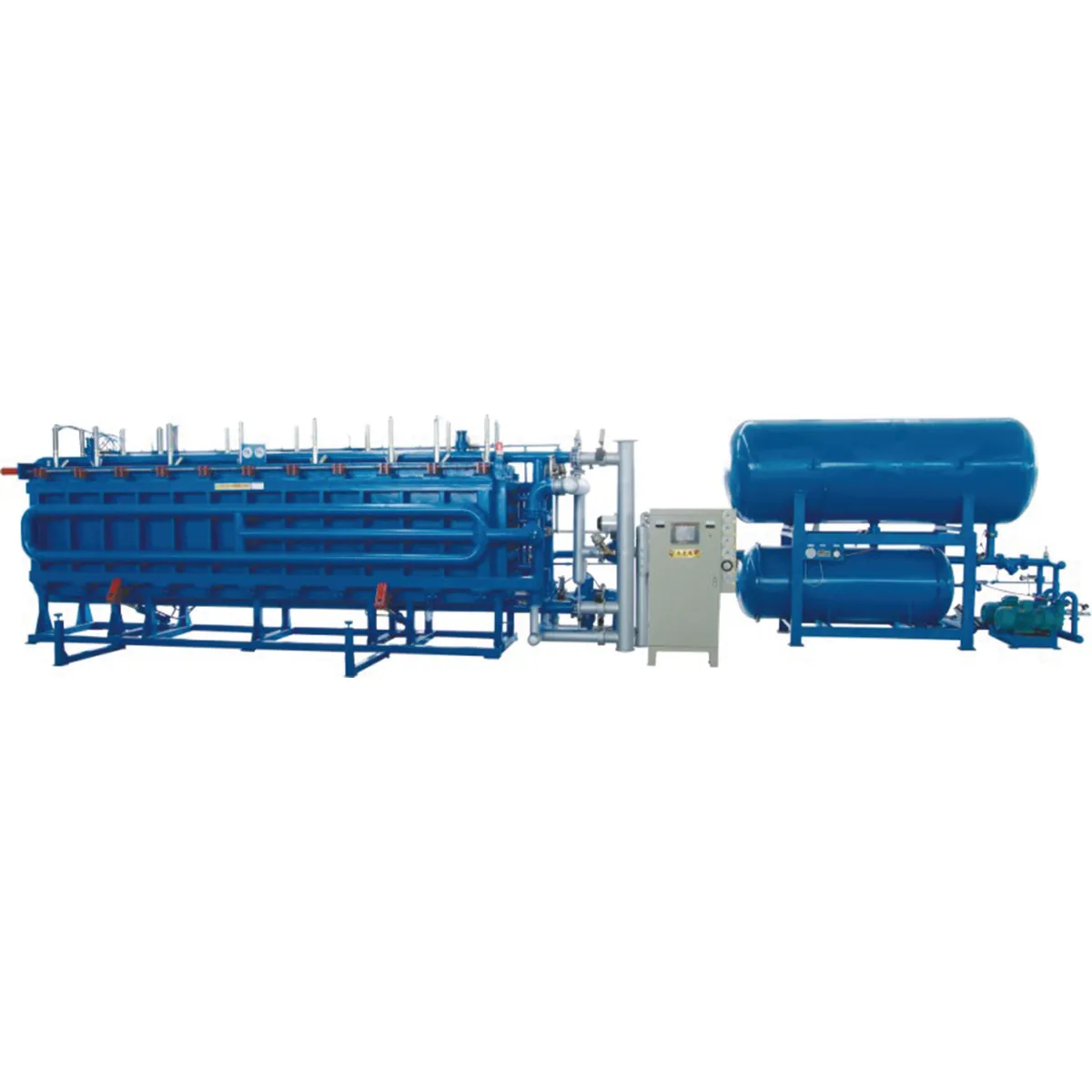

BM-1400 Automatic Block Molding Machine
Get a Quick QuoteThe BM-1400 Automatic Block Molding Machine is a eps block molding machines manufactured by ChinaEps, featuring block size (l×w×h) of 1,400 × 800 × 400 mm and cycle time of 5-7 min. CE & ISO 9001 certified. Designed for eps insulation boards for construction, packaging blocks for cutting into sheets, medium-scale production facilities.
The BM-1400 is a mid-range automatic EPS block molding machine that steam-fuses pre-expanded beads into large foam blocks for cutting into sheets and panels. It produces blocks up to 1,400 x 800 x 400 mm with 5-7 minute cycle times, adjustable density from 8-30 kg/m3, and energy-efficient steam distribution. Ideal for medium-scale manufacturers of construction insulation boards, packaging materials, and geofoam blocks.
Key Specifications
Why Choose This Machine
Fully automatic PLC-controlled molding cycle
High-pressure hydraulic mold clamping
Vacuum cooling for reduced cycle times
Automatic material filling with air-assist
Adjustable block density from 8-30 kg/m³
Auto-ejection and block pusher system
Energy-efficient steam distribution design
Applications
This machine is widely used across multiple industries and production scenarios.
Technical Specifications
| Parameter | Value |
|---|---|
| Block Size (L×W×H) | 1,400 × 800 × 400 mm |
| Cycle Time | 5-7 min |
| Steam Pressure | 0.08-0.12 MPa |
| Steam Consumption | 45-55 kg/cycle |
| Installed Power | 30 kW |
| Density Range | 8-30 kg/m³ |
| Vacuum System | Built-in water ring pump |
| Machine Weight | 10,000 kg |
* Specifications are subject to change without notice. Contact us for the latest technical data.
