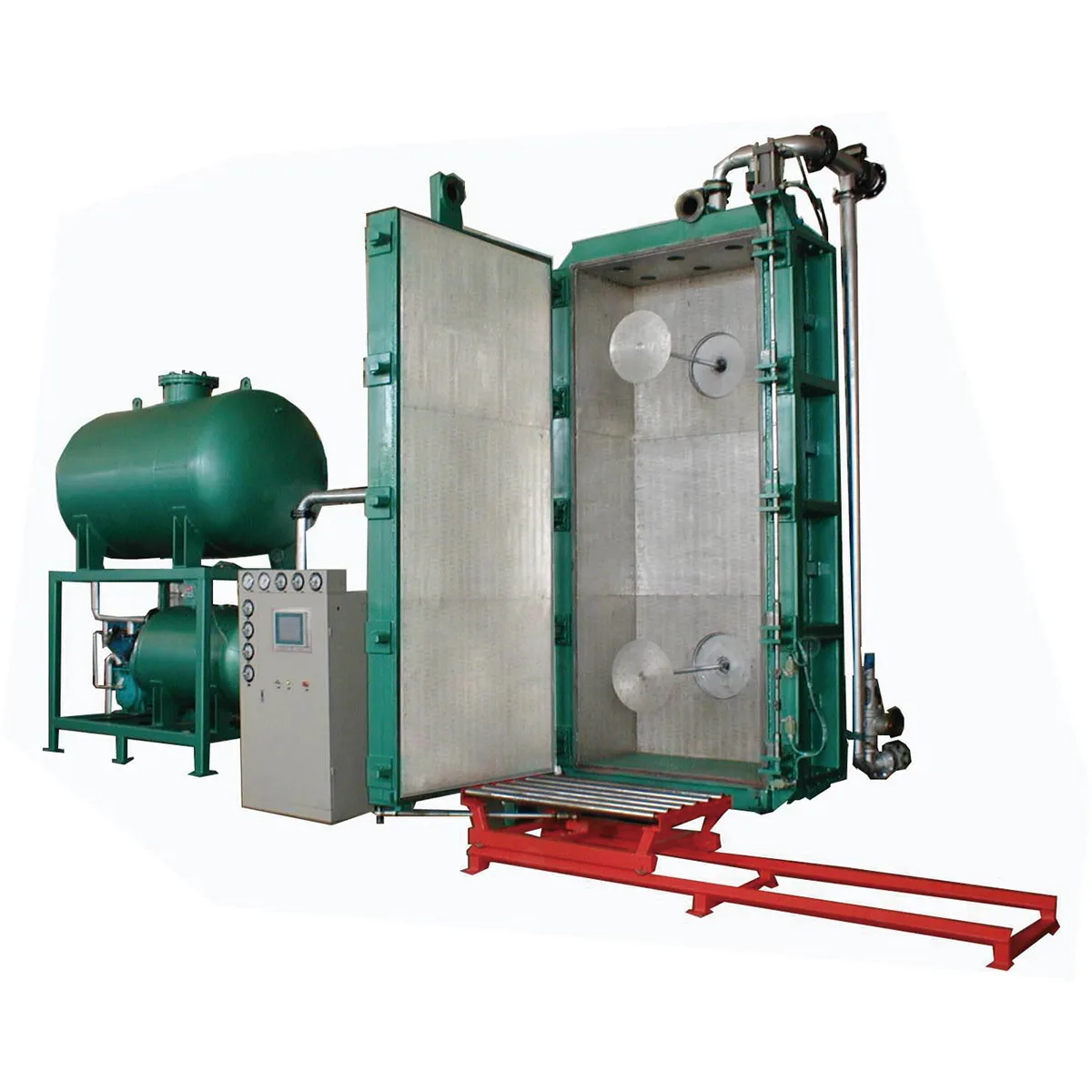

BM-1600 Automatic Block Molding Machine
Get a Quick QuoteThe BM-1600 Automatic Block Molding Machine is a eps block molding machines manufactured by ChinaEps, featuring block size (l×w×h) of 1,600 × 1,000 × 500 mm and cycle time of 4-6 min. CE & ISO 9001 certified. Designed for large-scale eps insulation board production, geofoam blocks for civil engineering, high-volume packaging block manufacturing.
The BM-1600 is a high-capacity automatic EPS block molding machine engineered for industrial-scale foam block production. It produces blocks up to 1,600 x 1,000 x 500 mm with 4-6 minute cycle times, high-capacity vacuum cooling, and remote monitoring capability at 37 kW installed power. Built for large-scale manufacturers producing insulation boards, civil engineering geofoam blocks, and high-volume packaging materials.
Key Specifications
Why Choose This Machine
Fully automatic PLC-controlled molding cycle
High-pressure hydraulic mold clamping
High-capacity vacuum cooling system
Automatic material filling with air-assist
Adjustable block density from 8-30 kg/m³
Auto-ejection and block pusher system
Remote monitoring and diagnostics
Energy-efficient steam distribution design
Applications
This machine is widely used across multiple industries and production scenarios.
Technical Specifications
| Parameter | Value |
|---|---|
| Block Size (L×W×H) | 1,600 × 1,000 × 500 mm |
| Cycle Time | 4-6 min |
| Steam Pressure | 0.08-0.12 MPa |
| Steam Consumption | 55-70 kg/cycle |
| Installed Power | 37 kW |
| Density Range | 8-30 kg/m³ |
| Vacuum System | High-capacity water ring pump |
| Machine Weight | 14,000 kg |
* Specifications are subject to change without notice. Contact us for the latest technical data.
