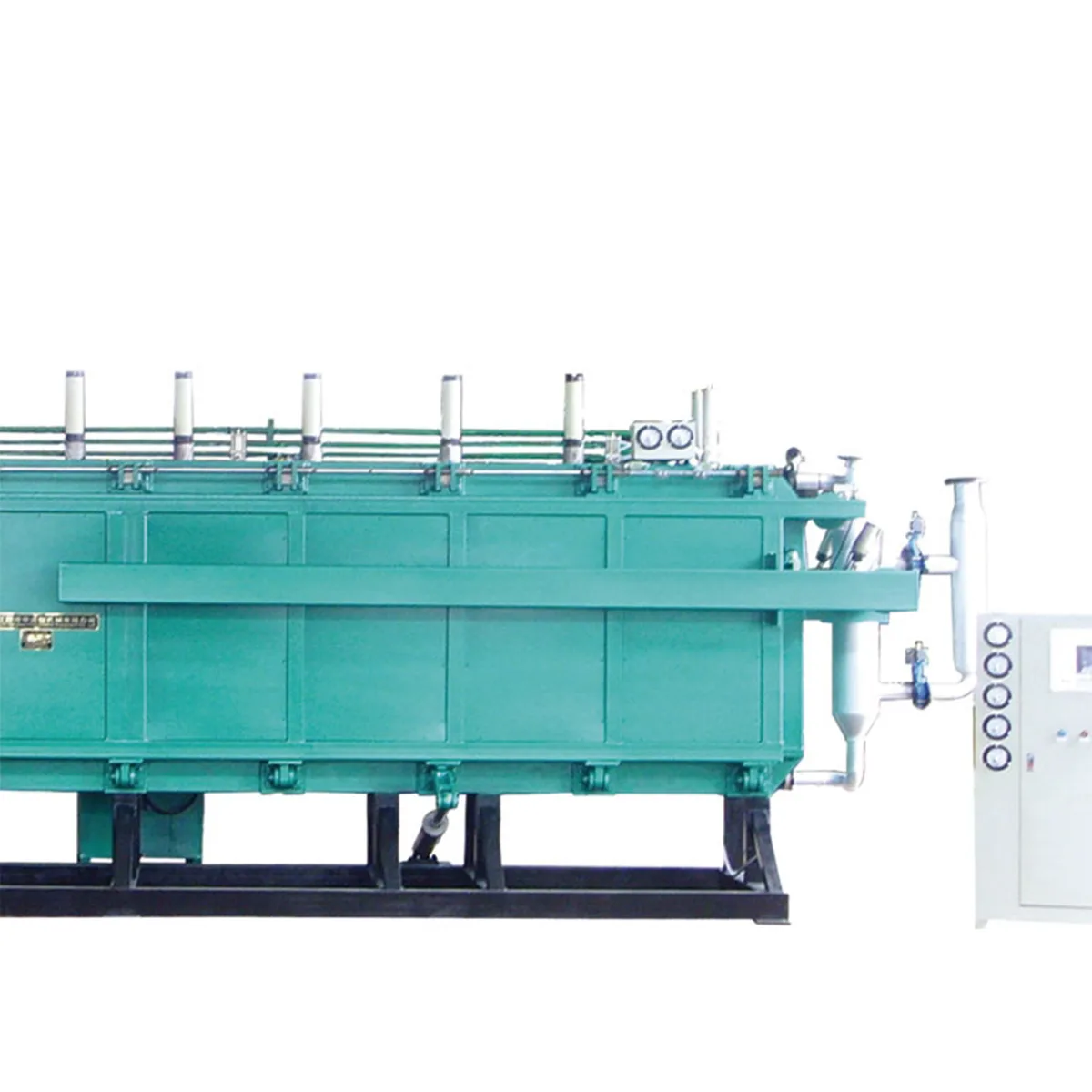

BM-1800 Automatic Block Molding Machine
Get a Quick QuoteThe BM-1800 Automatic Block Molding Machine is a eps block molding machines manufactured by ChinaEps, featuring block size (l×w×h) of 1,800 × 1,200 × 600 mm and cycle time of 3-5 min. CE & ISO 9001 & ISO 14001 certified. Designed for large-scale eps insulation board production, geofoam blocks for civil engineering, continuous 24/7 high-volume production.
The BM-1800 is our largest automatic block molding machine, producing blocks up to 1,800 × 1,200 × 600 mm. With the fastest cycle time of 3-5 minutes and SCADA integration, it is the ultimate solution for high-volume continuous production. Energy recovery system reduces operating costs for 24/7 operations.
Key Specifications
Why Choose This Machine
Fully automatic PLC-controlled molding cycle
Heavy-duty hydraulic mold clamping system
High-capacity vacuum cooling system
Automatic material filling with multi-point air-assist
Adjustable block density from 8-30 kg/m³
Auto-ejection and block pusher system
SCADA integration for production line management
Energy recovery system for reduced operating costs
Applications
This machine is widely used across multiple industries and production scenarios.
Technical Specifications
| Parameter | Value |
|---|---|
| Block Size (L×W×H) | 1,800 × 1,200 × 600 mm |
| Cycle Time | 3-5 min |
| Steam Pressure | 0.08-0.12 MPa |
| Steam Consumption | 70-80 kg/cycle |
| Installed Power | 45 kW |
| Density Range | 8-30 kg/m³ |
| Vacuum System | High-capacity water ring pump |
| Machine Weight | 18,000 kg |
* Specifications are subject to change without notice. Contact us for the latest technical data.
