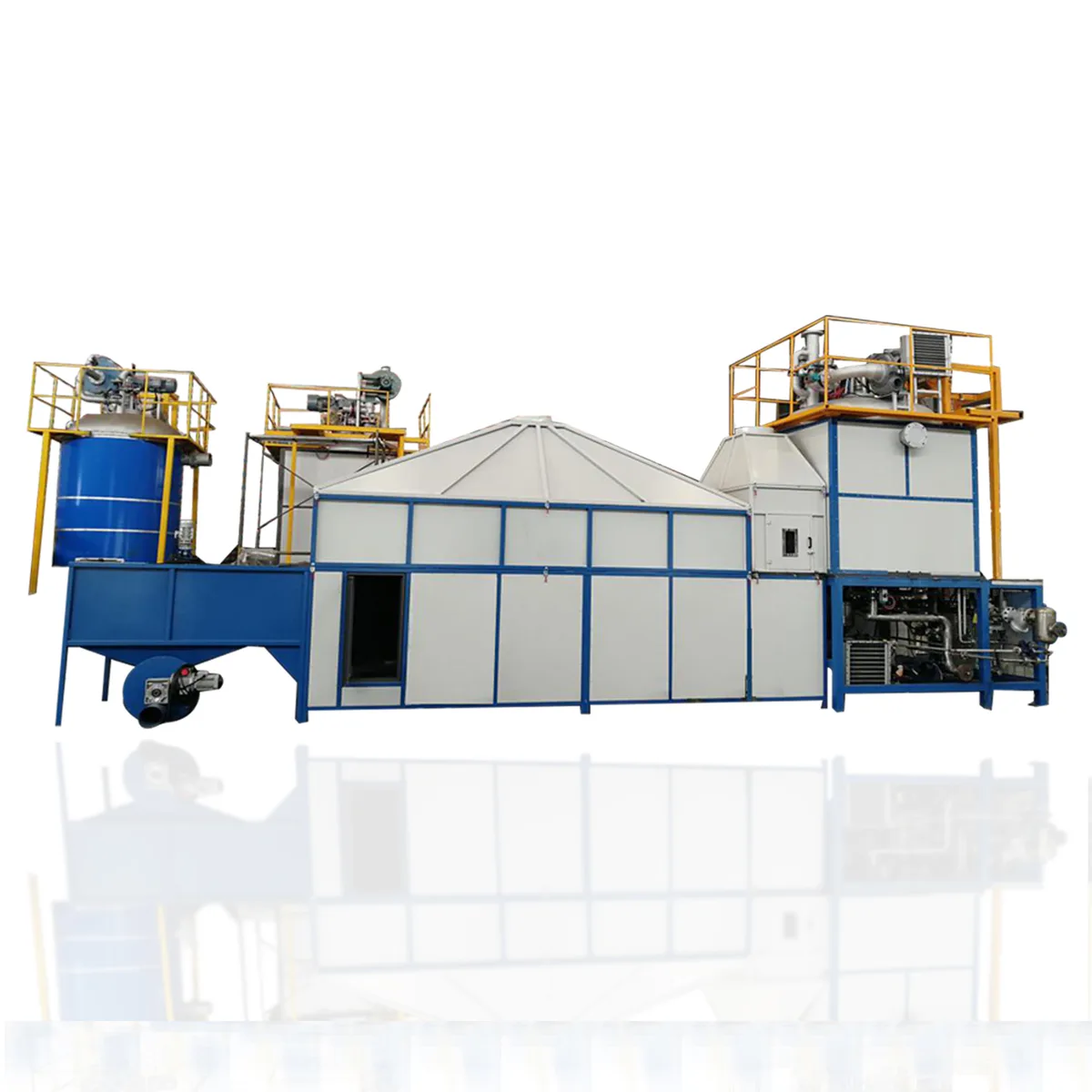

PE-2000 Continuous Pre-Expander
Get a Quick QuoteThe PE-2000 Continuous Pre-Expander is a eps pre-expanders manufactured by ChinaEps, featuring barrel diameter of 2,000 mm and capacity of 1,800-2,000 kg/h. CE & ISO 9001 & ISO 14001 certified. Designed for large-scale eps production plants, high-volume insulation board manufacturing, continuous 24/7 production operations.
The PE-2000 is our flagship continuous pre-expander for large-scale EPS production. Delivering up to 2,000 kg/h with automatic density control, it is built for 24/7 non-stop operation. Multi-zone steam injection ensures uniform bead expansion, while SCADA integration enables full production line monitoring.
Key Specifications
Why Choose This Machine
Continuous pre-expanding for non-stop production
Siemens PLC with SCADA integration
Automatic density control with feedback loop
Multi-zone steam injection for uniform expansion
Built-in fluidized bed dryer connection
Low maintenance design with easy-access panels
Touchscreen HMI with production data logging
Energy recovery system for reduced operating costs
Applications
This machine is widely used across multiple industries and production scenarios.
Technical Specifications
| Parameter | Value |
|---|---|
| Barrel Diameter | 2,000 mm |
| Capacity | 1,800-2,000 kg/h |
| Steam Pressure | 0.20-0.25 MPa |
| Steam Consumption | 140-150 kg/batch |
| Installed Power | 55 kW |
| Expansion Ratio | 40-80 times |
| Machine Weight | 12,000 kg |
| Dimensions (L×W×H) | 3,800 × 3,000 × 5,800 mm |
* Specifications are subject to change without notice. Contact us for the latest technical data.
Certifications & Compliance
