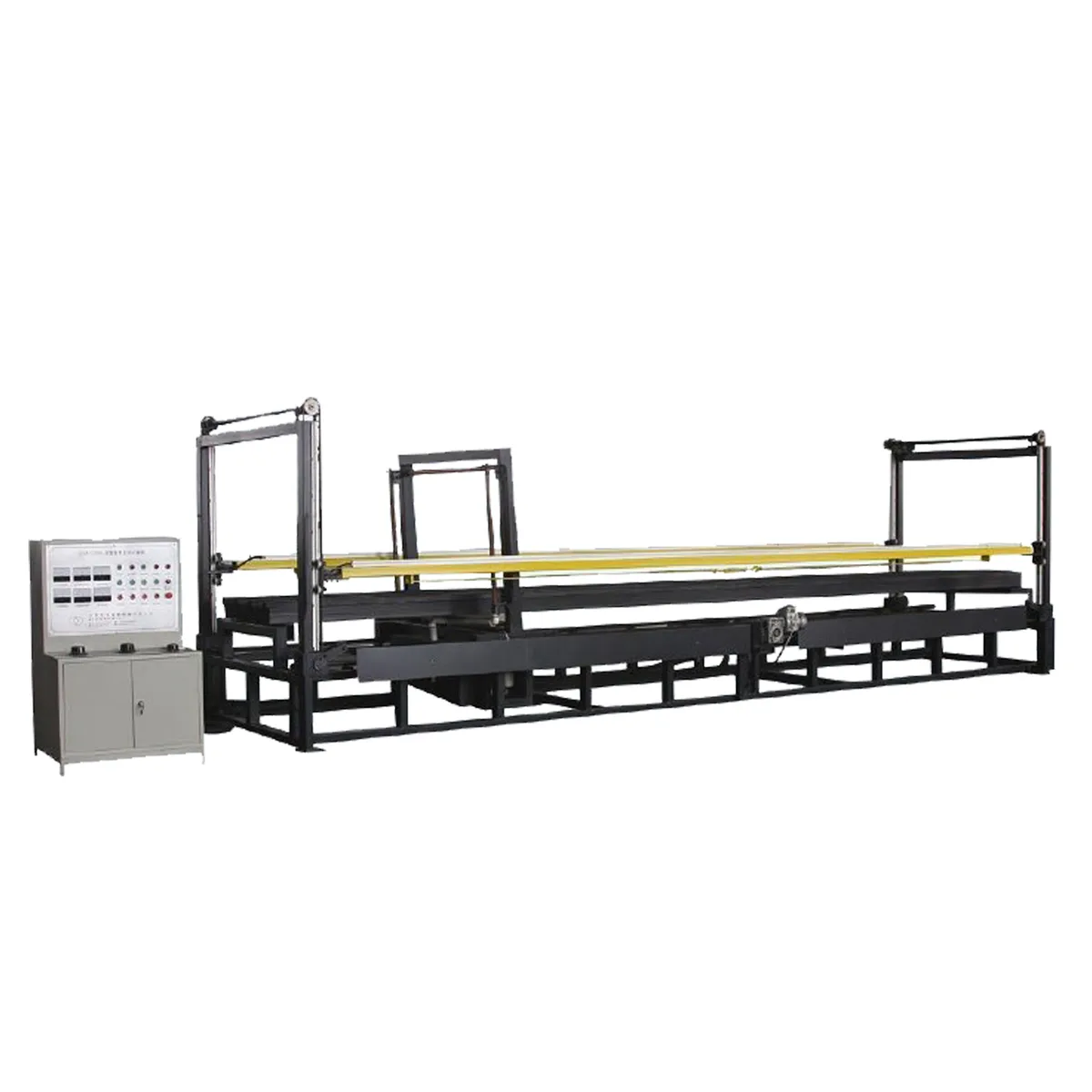

CM-8000 CNC Hot Wire Cutting Machine
Get a Quick QuoteThe CM-8000 CNC Hot Wire Cutting Machine is a eps cutting machines manufactured by ChinaEps, featuring max cutting length of 8,000 mm and cutting width of 1,300 mm. CE & ISO 9001 certified. Designed for maximum-length insulation board production, complex 3d architectural profile cutting, large-scale industrial and civil engineering projects.
The CM-8000 is our largest CNC hot wire cutting machine with an impressive 8,000mm cutting length. Featuring up to 80 wires, SCADA integration, and automatic wire tension compensation, it is the ultimate solution for maximum-length insulation boards and complex 3D architectural cutting projects.
Key Specifications
Why Choose This Machine
CNC programmable cutting paths with memory storage
Adjustable wire spacing for various thicknesses
Ni-Cr alloy hot wire for clean cuts
Automatic block feeding and positioning
Digital wire temperature control with PID
Horizontal, vertical, and 2D/3D shape cutting modes
Batch cutting mode for maximum efficiency
Integrated dust collection system
Remote monitoring and SCADA integration
Automatic wire tension compensation
Applications
This machine is widely used across multiple industries and production scenarios.
Technical Specifications
| Parameter | Value |
|---|---|
| Max Cutting Length | 8,000 mm |
| Cutting Width | 1,300 mm |
| Wire Speed | 0-3,000 mm/min adjustable |
| Wire Type | Hot wire (Ni-Cr alloy) |
| Installed Power | 15 kW |
| Cutting Accuracy | ±1 mm |
| Number of Wires | 1-80 adjustable |
| Machine Weight | 6,500 kg |
* Specifications are subject to change without notice. Contact us for the latest technical data.
